MS7

Order Code: MS7
Unit: EACH
Essen

Pack
Price
Quantity
1+
£8.70
50+
£8.27
100+
£7.83
150+
£7.40
200+
£6.96
(Ex. VAT)

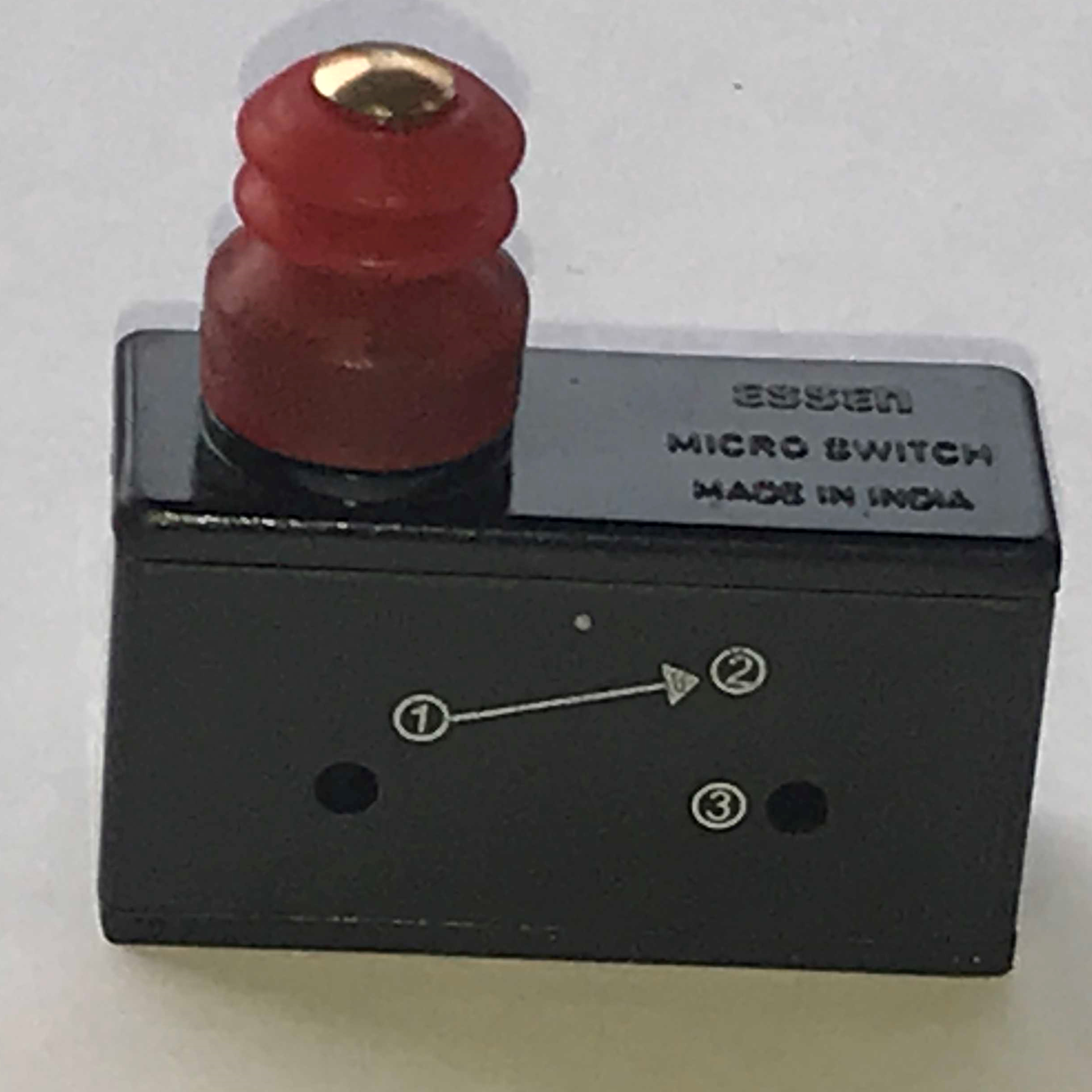

MS7

Characteristics:-

  • Single pole changeover, snap acting switch
  • Fine silver contacts
  • Beryllium copper trident spring operating mechanism
  • 6BA terminal screws
  • 3.96mm wide wiring channels protected by removable insulated cover plate



  • Actuating force: 720gms (max)
  • Release force: 170gms (min)
  • Pre-travel: 1.40mm (max)
  • Overtravel: 4.6mm
  • Movement differential: 0.08mm (max)
  • Salient Features: Heavy duty spring plunger actuator protected by a synthetic rubber cowl

     Conforms to IEC 1058-1 standard

     CSA/CE approved



Possible suitable alternative for Saia-Burgess 3BR/103 - please check the datasheet to see if this switch is suitable for your application.
