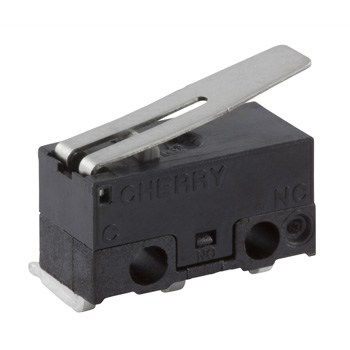

ZF 3a microswitch with plain lever and PCB terminals.

Specification:

Elect Rating: 3A/125Vac

Configuration: SPDT

Terminals: PCB - 0.9 x 06mm RH

Actuator Length from ref.point:   Straight lever - 4.35mm

Mounting Point: Rear

Temperature Rating: T85

Protection: IP40

ZF DG Sub Subminiature Switch Range Features:

Extremely small dimensions – only 12.8 x 5.8 x 6.5mm

Breaking capacity ranges from small switching currents and voltages to low-voltage applications up to 3 A 125 V AC.

• Available with or without auxiliary actuator
• Use on circuit boards with connections to the left or right and standing
• High mechanical operating life.  Depending on model >1,000,000 operations
