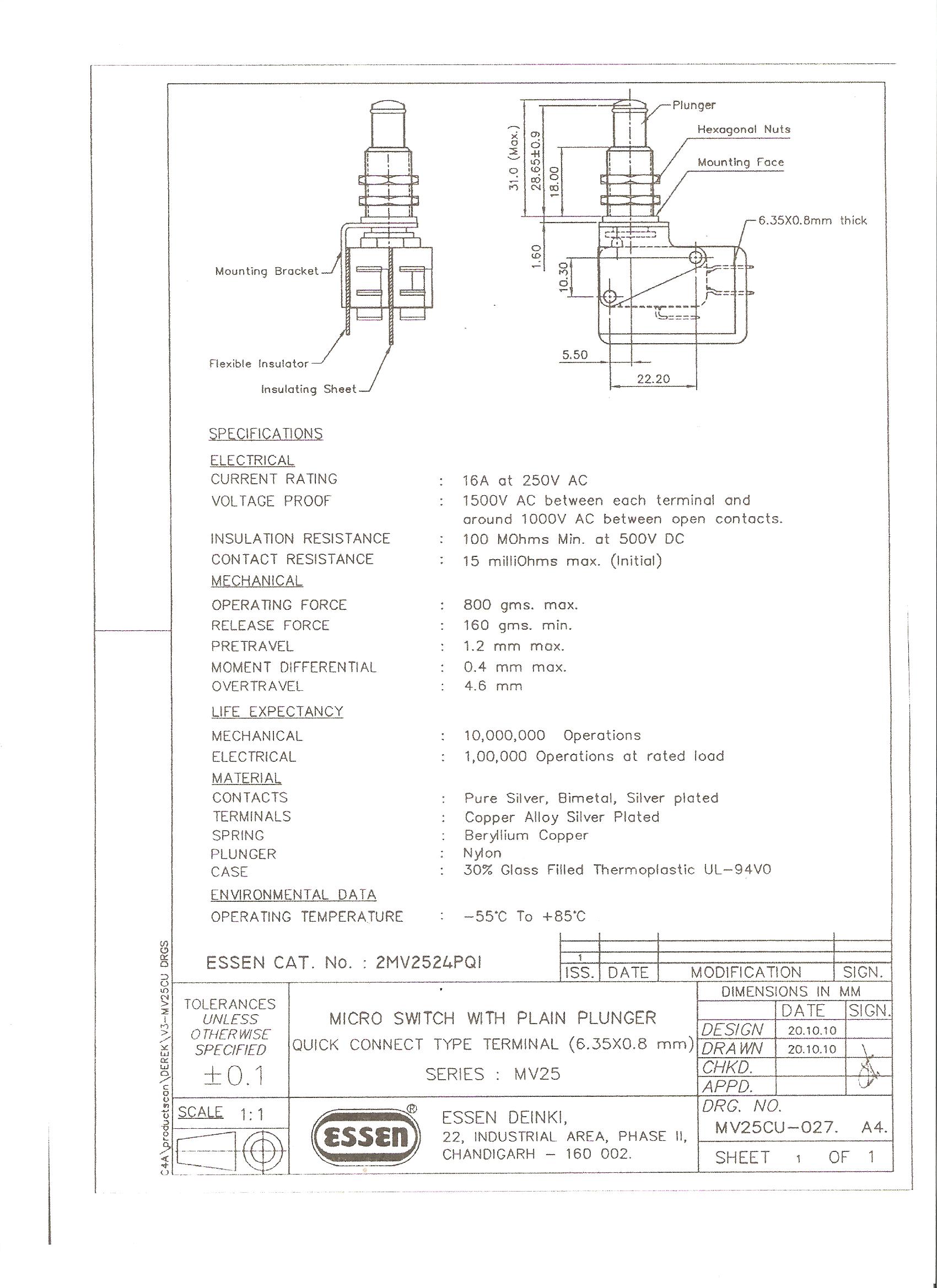

Essen 16a Microswitch with 31mm plunger.

This switch is a possible alternative to the now obsolete Saia-Burgess 2VCFQ1 and the Saia-Burgess 2VCF9Q1.

SPECIFICATIONS:

• Current Rating: 16A at 250Vac
• Voltage Proof: 1500Vac between each terminal and around 1000Vac between open contacts
• Insulation Resistance: 100 M0hms min at 500Vdc
• Contact Resistance: 15 milli0hms max (Initial)
• Operating Force: 800 gms max
• Release Force: 160 gms min
• Pretravel: 1.2mm max
• Moment Differential: 0.4mm max
• Overtravel: 4.6mm
• Mechanical Life Expectancy: 10,000,000 operations
• Electrical Life Expectancy: 100,000 operations at rated load
• Contacts:  Pure silver, bimetal, silver plated
• Terminals: Copper alloy silver plated
• Spring: Beryllium copper
• Plunger: Nylon
• Case: 30% Glass Filled Thermoplastic UL-94V0
• Operating Temperature: -55°C - +85°C
