Essen Deinki 5a Microswitch with spring returned plunger actuator.

• Zinc plated frame with spring returned plunger with 18mm threaded length.
• Plunger is provided with two nuts for adjustment.
• Suitable for a single hole mounting.

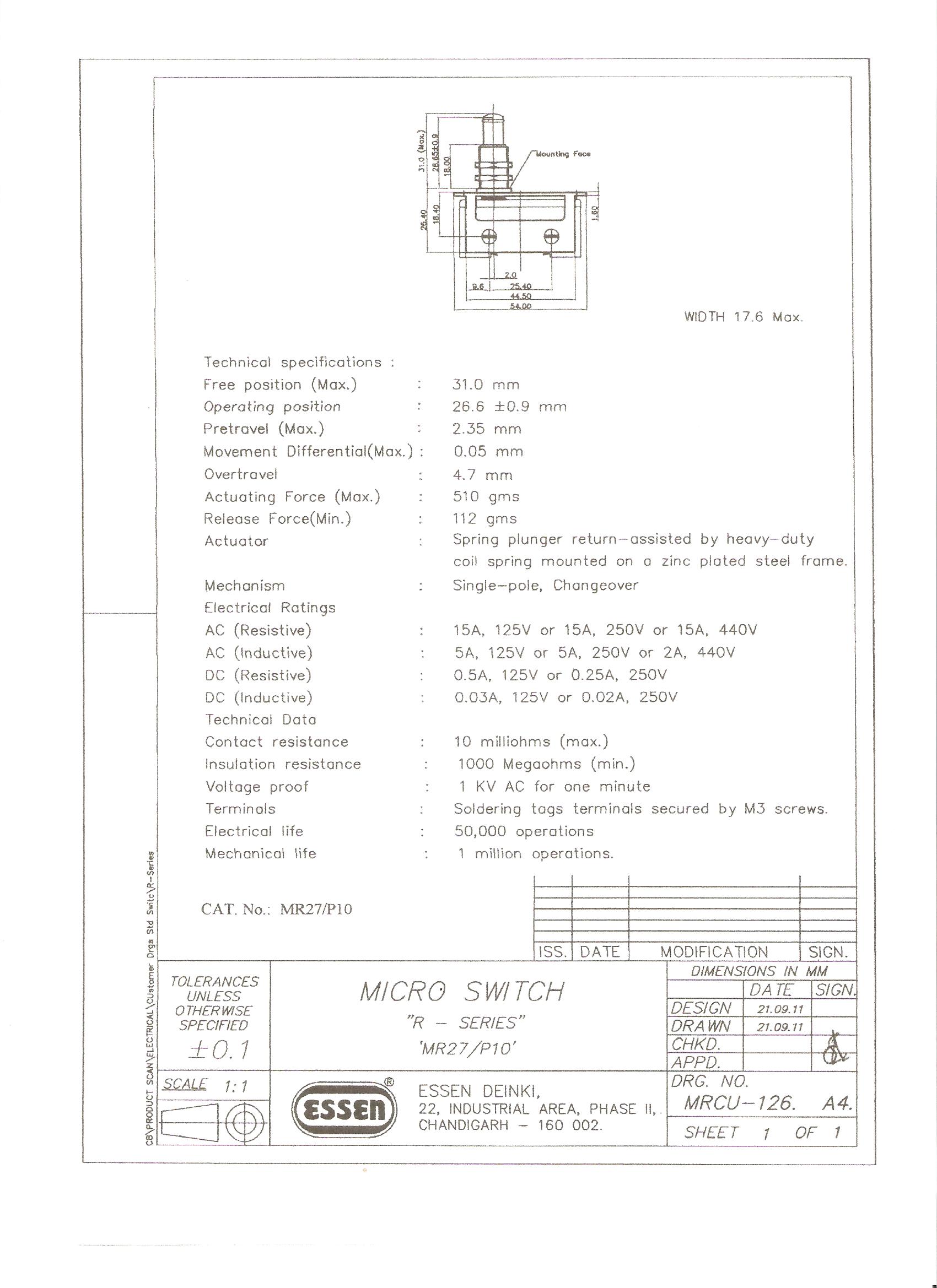

Specification:

• Single pole changeover, snap-action
• Fine silver contacts
• Beryllium copper trident spring operating mechanism
• Solder tag terminals secured by M3 screws
• Conform to IED 1058-1 standard
• Actuating force: 510 gms (max)
• Release force: 112 gms (min)
• Pretravel: 2.35mm (max)
• Overtravel: 4.70mm
• Movement differential: 0.05mm (min)
