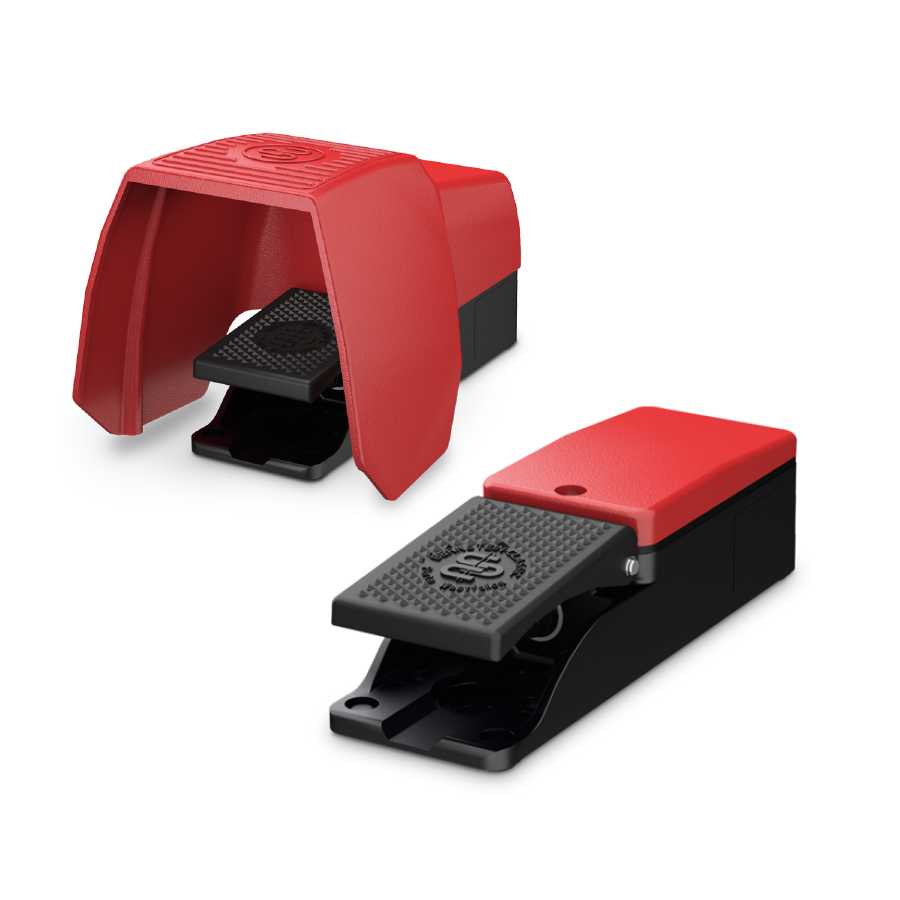

Bernstein metal-bodied Single Pedal Foot Switch.

Overview:

·  Foot switch enclosure - Cast aluminium

·  Foot switch cover, Protective Shroud - Cast aluminium

·  Foot switch pedal - Thermoplastic

·  Cable Entry - M20 x 1.5

·  Protection Class - IP 65

·  B10d = up to 20 Mio

·  Conforms to VDE 0660 T100, DIN EN 60947-1 IEC 60947 - 1

·  Conforms to VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1

Product Options

·  Available un-guarded, or with protective shroud (UN)

·  Snap action and Slow action contacts

·  IP 67 option available

·  Contacts 1NC / 1NO, 2NC / 2NO & SiPf available (see downloads for Key)

·  Pressure point up to 460N available

·  Available with Pressure point (D), Pedal latch (Y), E-stop (NA2), Pedal Lock (AT), potentiometer (Mi RG) and other additional functions

Bernstein Custom

All foot switch systems can be customized with Cabling and connectors as well as additional RAL colours to suit your application.
