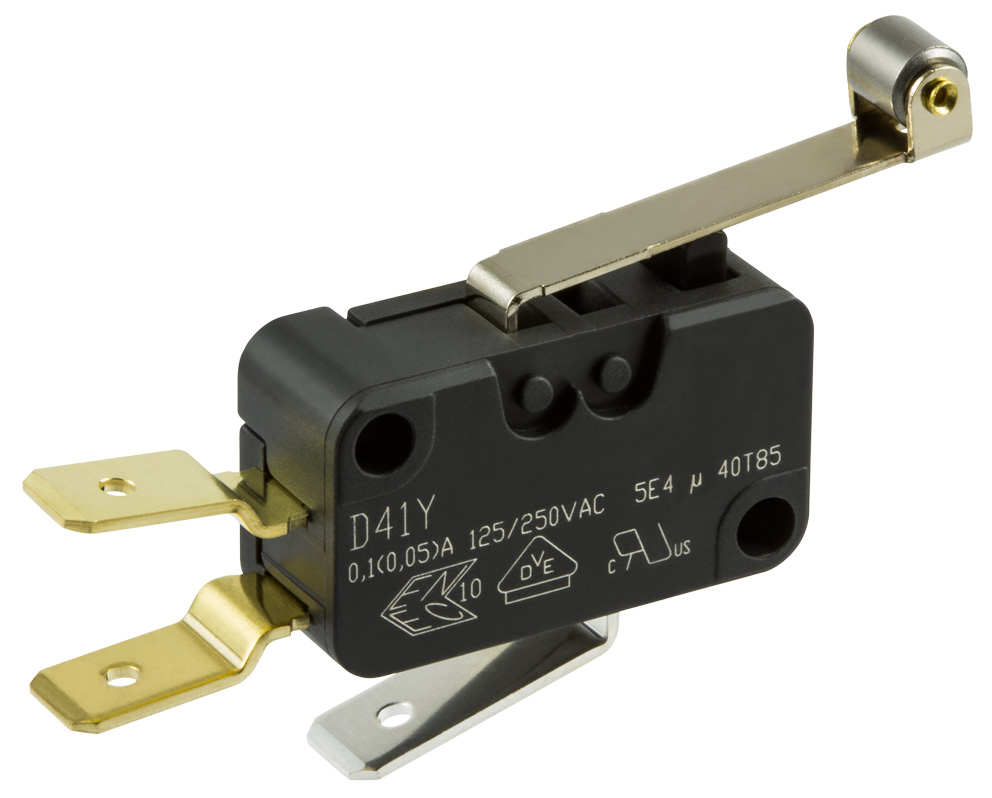

ZF 0.1a microswitch with 34.1mm roller lever and quick-connect terminals.

D4 Series

The D4 series miniature microswitches are highly reliable and ofer a high level of repeat accuracy.  The D4 series has high contact stability due to application-specific contact materials for switching currents of 100 mA to 21A at 250Vac.

Polyester casing, snap-action, V3 case size

EN 61058 and UL1054 approved

Cadmium-free contact material

Specifications:

Elect Rating: 0.1(0.05)A/250vac

Configuration: SPDT

Terminals: Quick-connect - 6.3 x 0.8mm dog-leg

Mounting Position: Rear

Lever: 34.1mm

Temperature Range: T85

Protection: IP40
